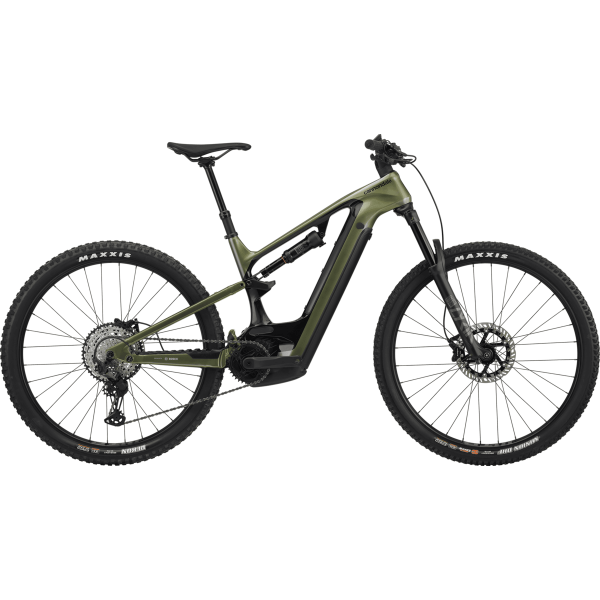

Cannondale 2023 Moterra Neo Carbon 2 - Matte
FRAMESET
Frame
Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5inch – 1.8inch tapered headtube, 18mm two-bolt kickstand mount
Fork
RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Headset
Acros integrated sealed bearing, tapered
Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
E-SYSTEM
Drive Unit
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Display
Bosch Kiox 300 w/ LED remote
Certifications
UL 2849
DRIVETRAIN
Rear Derailleur
Shimano XT
Shifters
Shimano SLX, 12-speed
Chain
Shimano SLX, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano SLX, 10-51, 12-speed
BRAKES
Brakes
Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers
Shimano MT501 hydraulic disc
WHEELS
Rims
WTB ST i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tire Size
2.6
Wheel Size
29
Hubs
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires
(F) Maxxis Minion DHF, 29x2.6inch, EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6inch (27.5x2.6inch - size Small), EXO, tubeless ready
Front Tire
Maxxis Minion DHF, 29x2.6inch, EXO, tubeless ready
Rear Tire
Maxxis Rekon, 29x2.6inch (27.5x2.6inch - size Small), EXO, tubeless ready
COMPONENTS
Handlebar
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Grips
Fabric FunGuy
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
EXTRA
Extra 1
Pre-installed light cable
